Coleman · gas-bbq

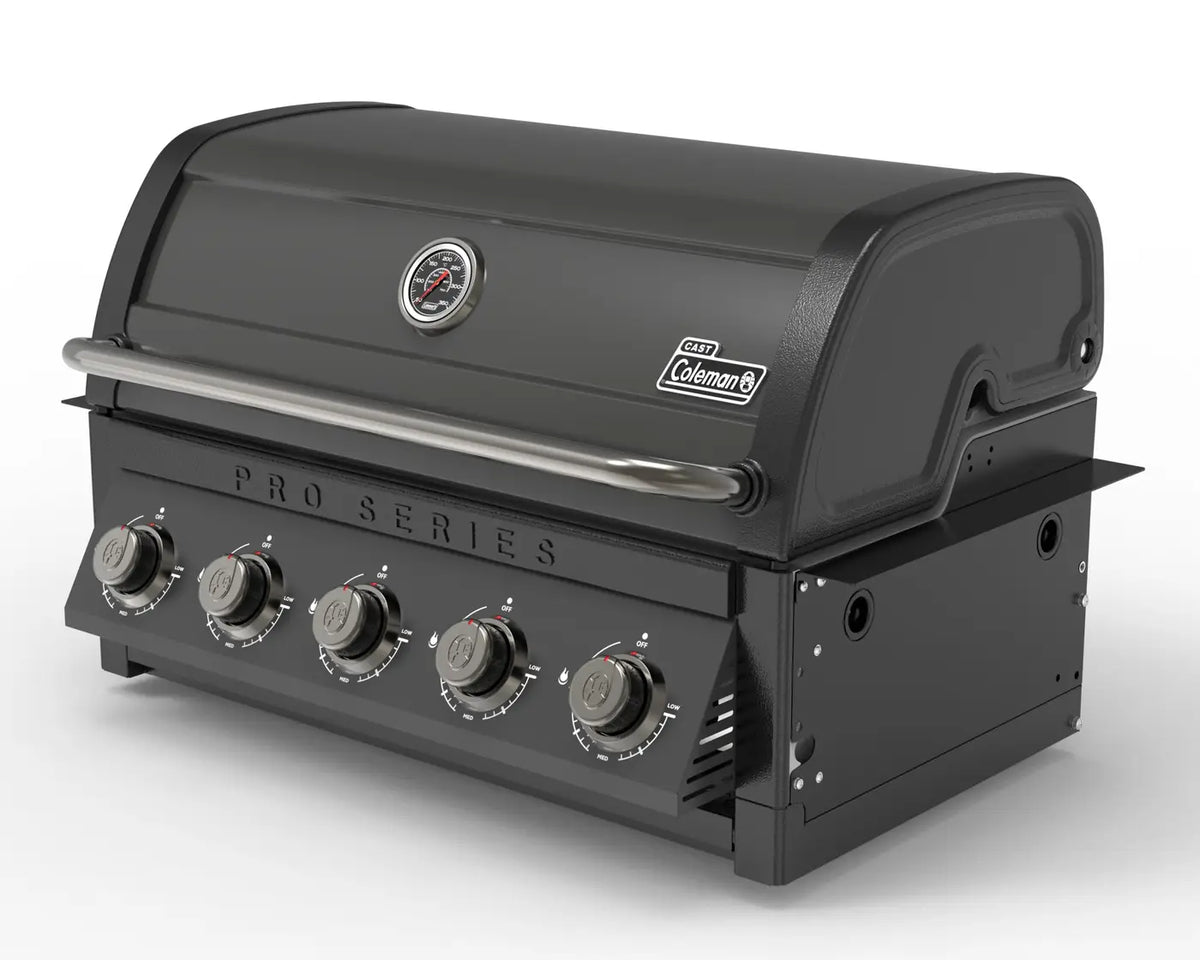

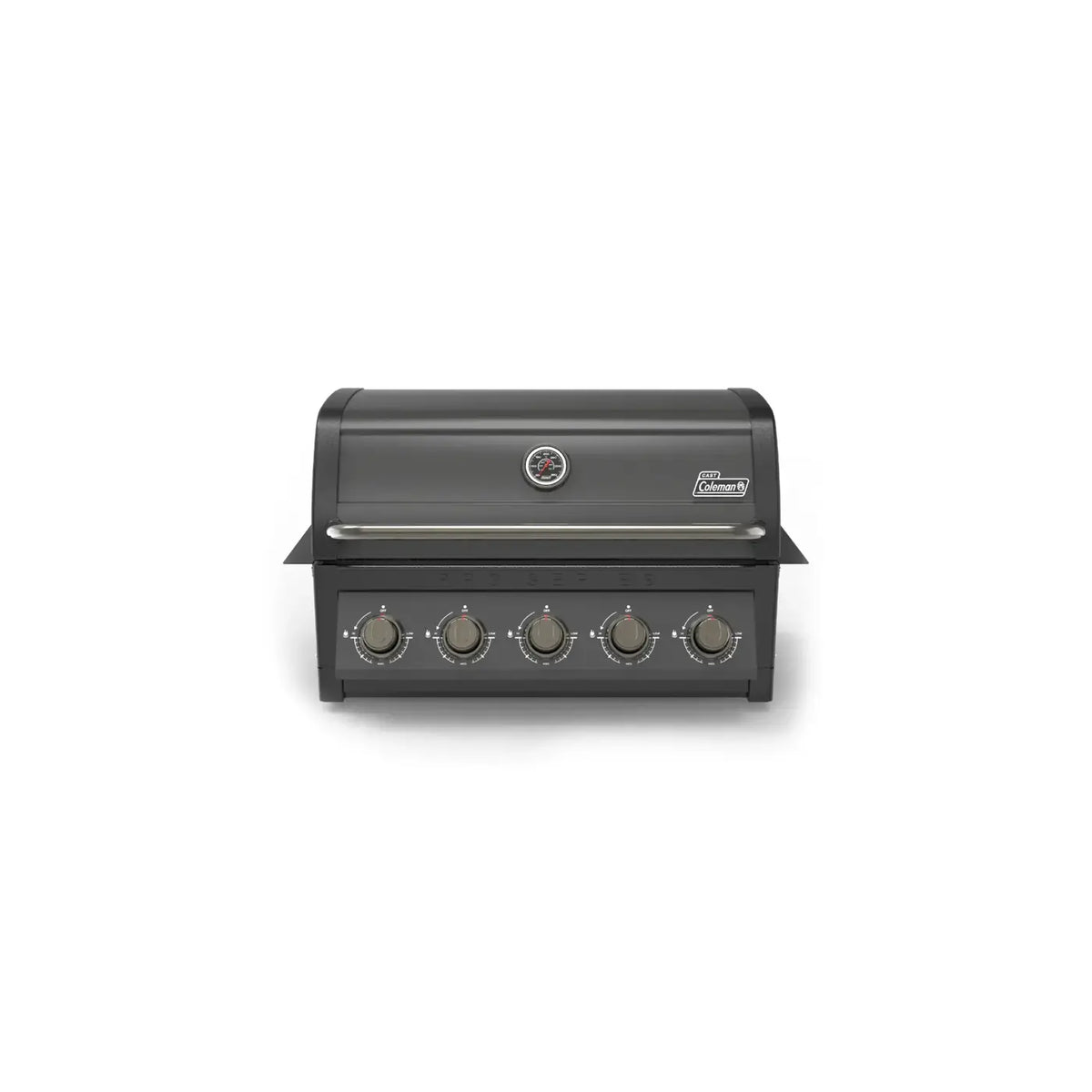

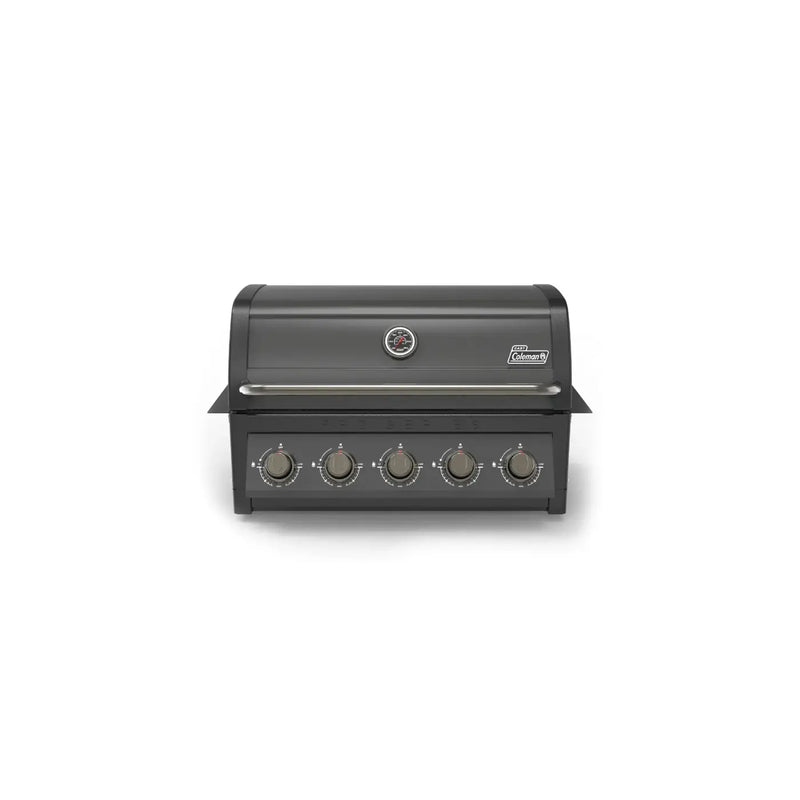

Coleman Pro Series 5 Burner Built-In Natural Gas BBQ
$1,799.00
$1,999.00
Save $200.00
In stock
Free 30-day returns if it's not right for you — see our returns policy.
Questions? Talk to an expert
A built-in gas BBQ that's always ready.
Plumbed straight to your gas main, five independent burners across 5,174 cm² of cooking area, backed by a 5-year warranty.
Five burners, five zones of heat, all under your control.
304 stainless burners producing 75 MJ/h combined, independently controlled.
Enough space for a crowd, and for the family dinner.
5,174 cm² of cooking area, the largest cooking surface in the Coleman range.
Holds its heat, holds its finish.
Quality where it matters: a robust double-walled hood, a hard-wearing porcelain-enamel finish, and a die-cast burner box made for the heat and weather of living outdoors.
The specs, plain as they get.
Heat output, cooking area, cutout dimensions and warranty, with the full spec list below.
75MJ/h
Total heat outputFive heavy-gauge 304 stainless burners under a double-walled hood.
5,174cm²

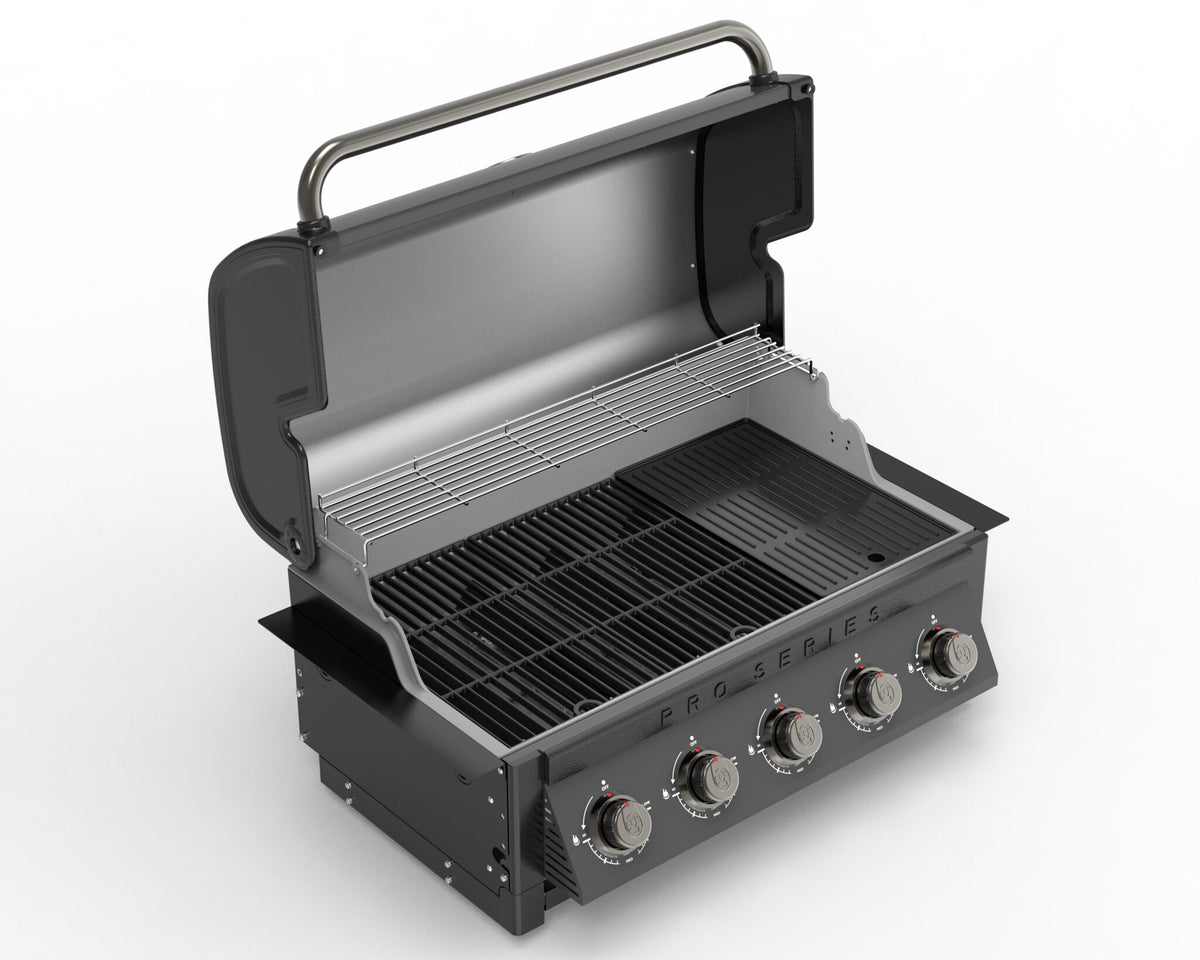

Total cooking areaA 4,129 cm² primary grill and a 1,045 cm² secondary surface above it.
867mm
Cutout width520 mm deep, with at least 300 mm of cavity height below.
Ø82mm
Gas inletSet back 170 mm from the front of the cutout.
304
Burner stainlessHeavy-gauge, with steel flame tamers, in a die-cast aluminium burner box.
5yr
WarrantyRegister the serial number at colemanbbqs.com.au/support.
50kg
WeightNet weight. Arrives at 55 kg gross.
75%
More grease capturedColeman's figure for the double-stacked grates, against a single-grate design.
Full specifications 14 rows
Cooking area
5,174 cm² total. 4,129 cm² primary grill plus a 1,045 cm² secondary surface
Burners
Five heavy-gauge 304 stainless burners at 75 MJ/h, with steel flame tamers
Burner box and grates
Die-cast aluminium burner box, porcelain-coated cast iron grates
Grease system
Flare-Free double-stacked grates draining forward to a pull-out cup
Included
Premium 1/3 double-sided hot plate, ridged on one face and smooth on the other
Ignition
Integrated Piezo ignition, no batteries

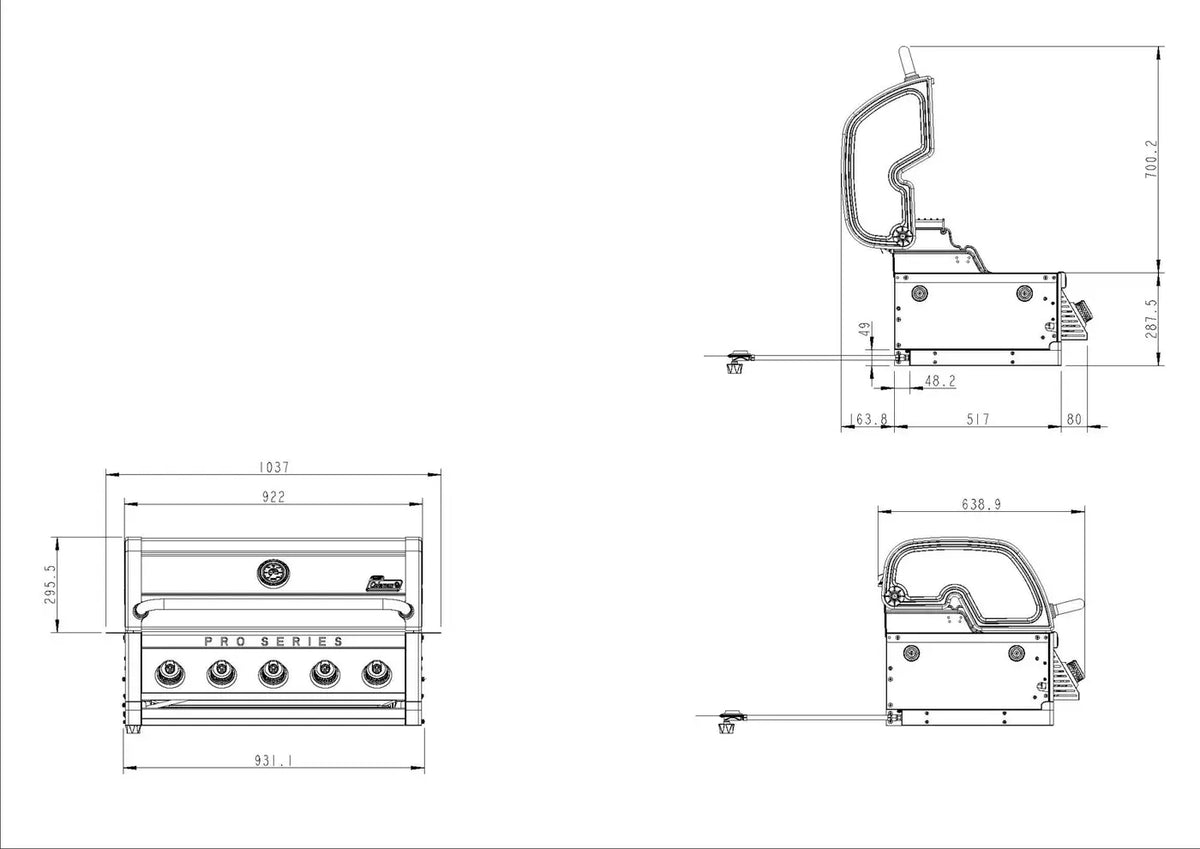

Assembled size
1037 mm wide, 639 mm deep, 296 mm high with the lid closed. 700 mm with the lid open
Cabinetry cutout
867 mm wide by 520 mm deep, 300 mm minimum cavity height, Ø82 mm gas inlet set back 170 mm
Fuel
Natural gas, fixed connection. LPG requires an approved conversion kit, sold separately
Finish
Matte black, double-walled porcelain enamel hood
Weight
50 kg net, 55 kg gross for shipping
Installation
Licensed gas fitter required under AS/NZS 5601
Modular
Compatible with the Coleman Outdoor Modular System
Warranty
5-year limited
Will it fit your space?
The two things that decide it are the cabinetry opening and the gas connection. Here's what each one needs.

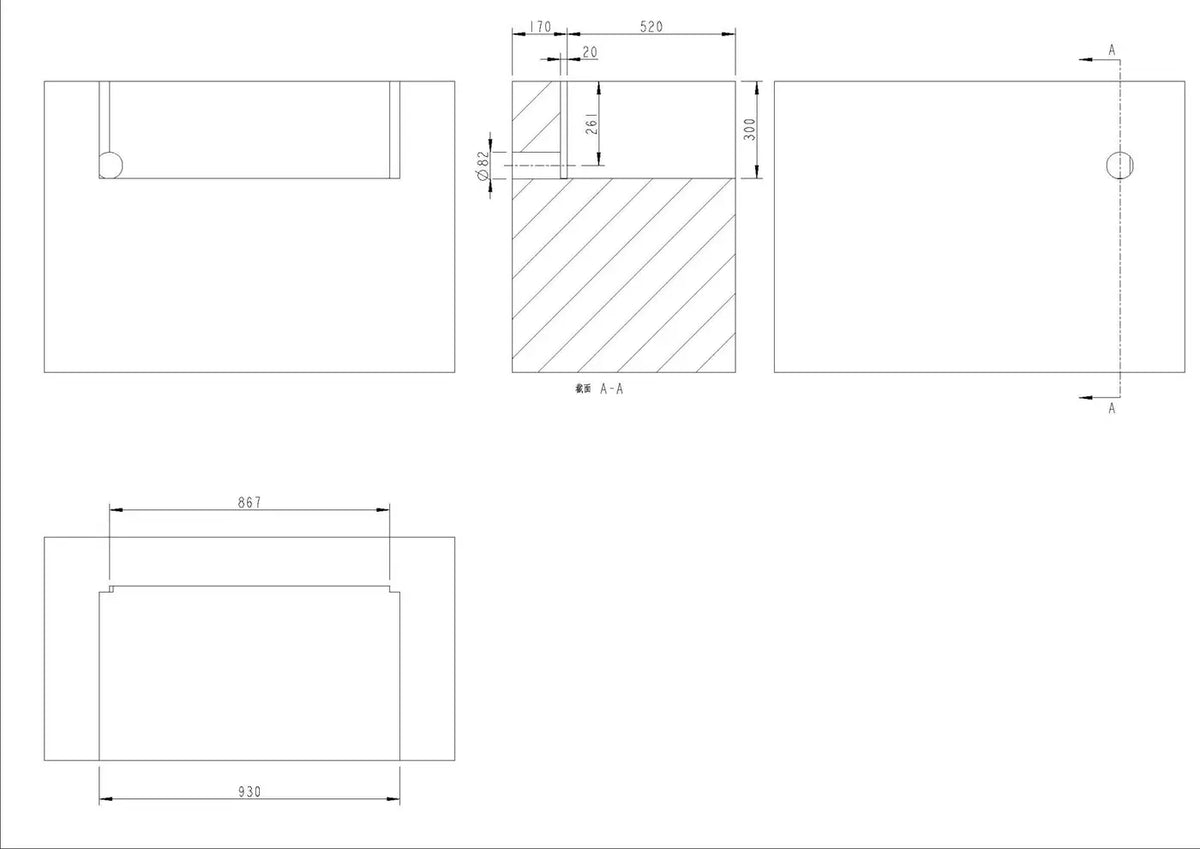

Check the opening

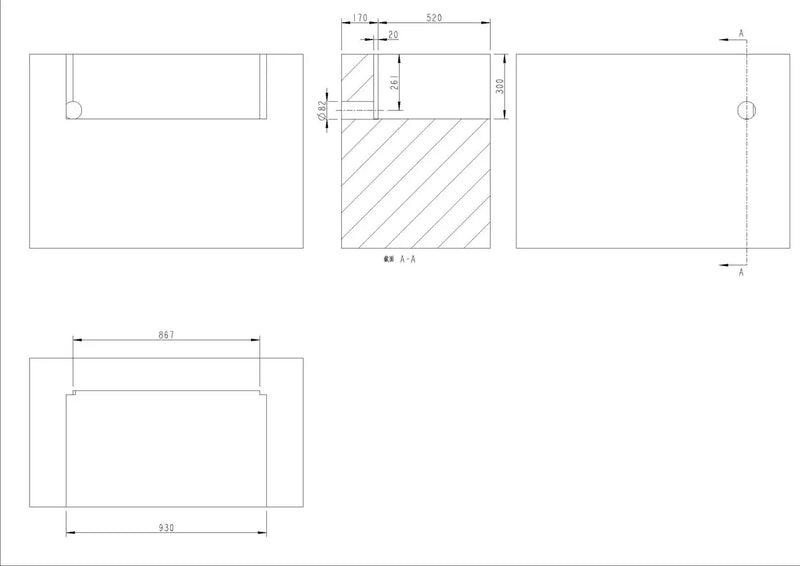

Confirm the cabinetry cutout before it lands. 867 mm wide by 520 mm deep, at least 300 mm of cavity height below, and the gas inlet set back 170 mm.
Book the gas fitter
A fixed natural gas appliance has to be connected by a licensed gas fitter under AS/NZS 5601. Line one up for the week it arrives.
Delivered, connected, cooking
It ships free anywhere in Australia and arrives as one drop-in head unit, ready to lower into the opening. Your fitter connects it and you are cooking that weekend.
- Cabinetry cutout
- 867 mm wide by 520 mm deep, 300 mm minimum cavity height
- Gas inlet hole
- Ø82 mm, set back 170 mm from the front
- Gas connection
- Fixed natural gas line. Licensed gas fitter required under AS/NZS 5601
- Assembly
- Drop-in head unit, two people recommended for the lift
See how it could look at your place.

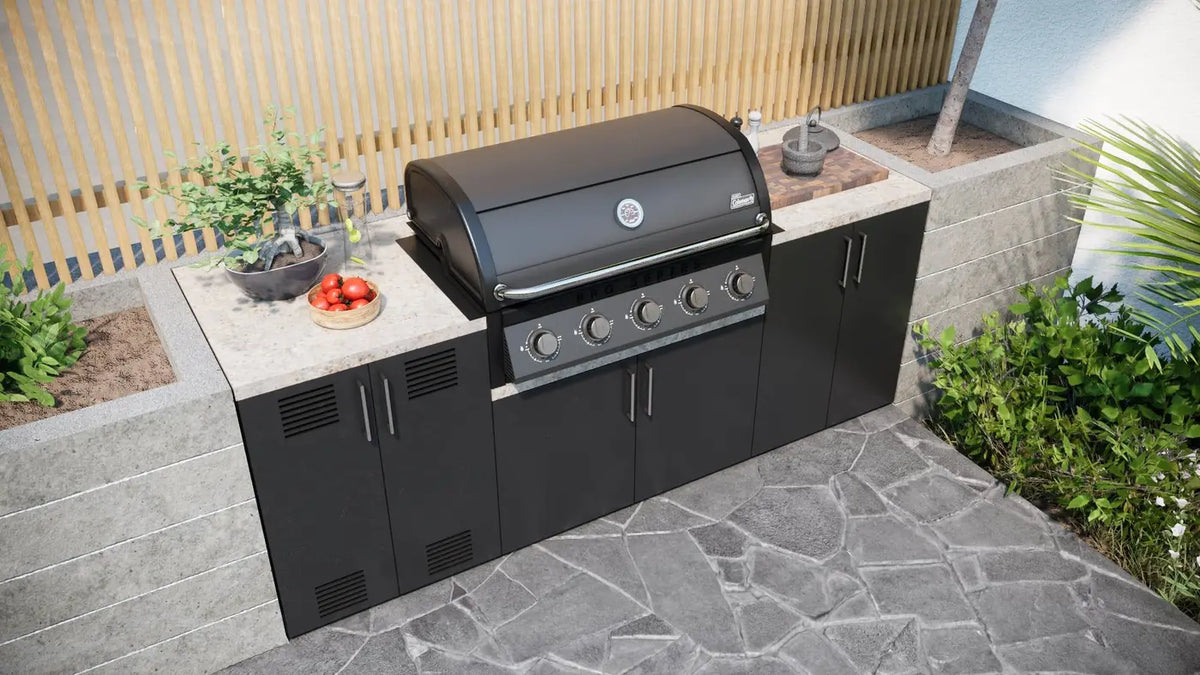

A real install, set into a stone bench. The cutout drawings and full dimensions are in the section above, ready for your cabinetmaker.
Outdoor kitchen planner
Want a different combination?
Use the configurator to compare BBQ, fridge, cupboard and storage modules, then come back here once you know the layout that suits your space.
- Compare module combinations
- Plan around your available space
- Useful before choosing a fixed package
Frequently Asked Questions
The things people ask before they build this one in. Anything not covered here, call us on 0432 061 514 and a person will answer.
Which model should I choose?

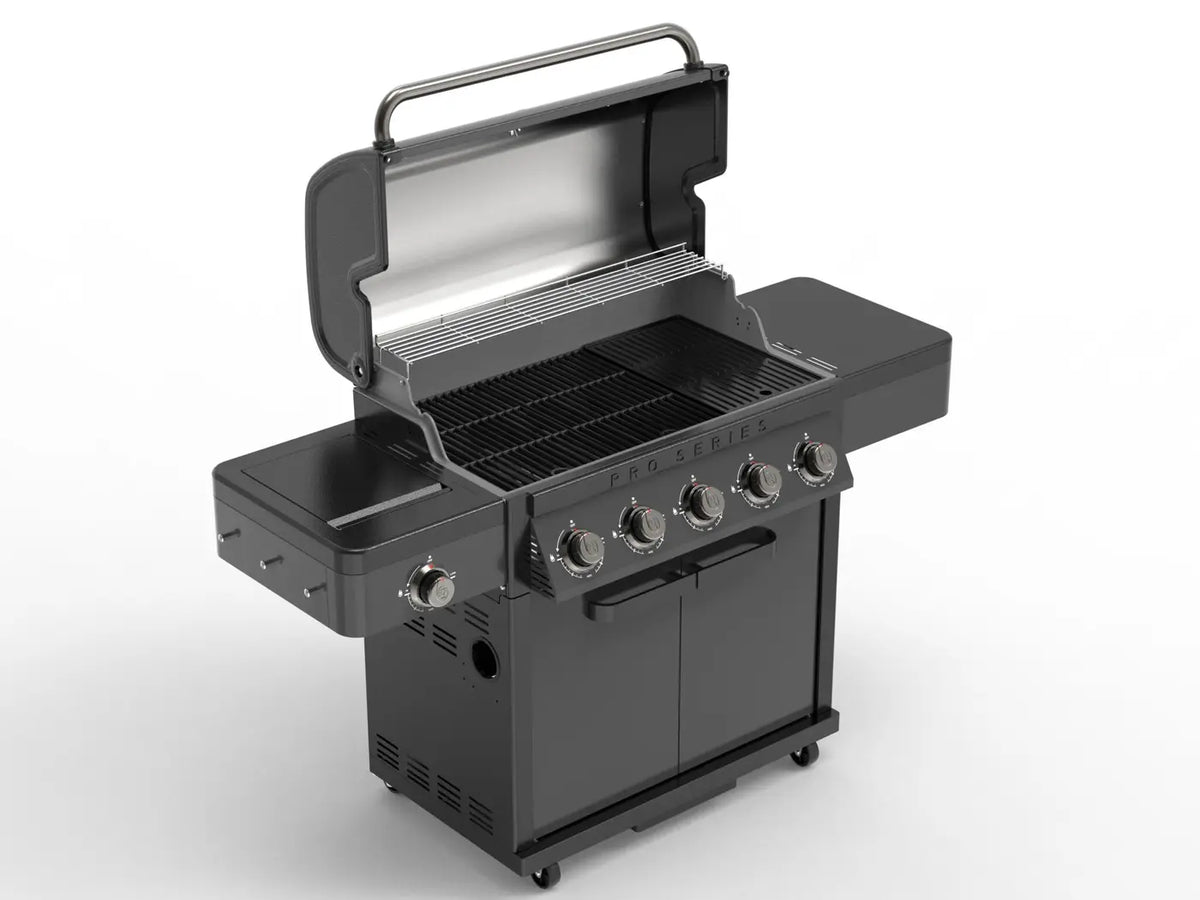

The Built-In is for a permanent outdoor kitchen. It is a head unit designed to sit into cabinetry, not a freestanding BBQ. If you want something that stands on its own with a side burner and storage underneath, see the Cart version instead.
Does it come assembled?
It arrives as a complete drop-in head unit, not a flat-pack, so there is no cart to build. The work is the cabinetry opening and the gas connection.
What is actually in the box?
The head unit, the porcelain-coated cast iron grates and a premium one-third double-sided hot plate, ridged on one face and smooth on the other. Gas connection hardware is supplied by your fitter to suit your gas point.
Does it come with a gas bottle?
No, this model runs on mains natural gas through a fixed connection rather than a bottle. If you only have LPG available, it can be converted with an approved kit, sold separately.
Do I need a licensed gas fitter to install this?
Yes. Connecting a fixed gas appliance is a legal requirement under AS/NZS 5601, the Australian gas installations standard, in every state. It is not something to do yourself.
Will it survive near the coast?
The burners are heavy-gauge 304 stainless with steel flame tamers, and the grates are porcelain-coated cast iron rather than bare steel, so the parts that usually go first are the parts Coleman built heaviest. Keep it covered when the bench is not in use.
What's the warranty?
A 5-year limited warranty from Coleman. Register your product at colemanbbqs.com.au/support once it arrives.
Can I return it if I change my mind?
Yes, within our standard return window. See our full returns policy for the exact terms and how to start a return. Check your cutout before a fitter cuts the bench.
